Color-management in Substance Painter with OCIO

It's there ! After so much time, Substance-Painter finally saw itself getting a shiny new color-management system with OCIO support. We're going to dive deeper inside and see how it works.

The article is divided into two parts. You got first a theoretical part that will try to explain how color-management works. This can help you debug issues and just not tweak settings like a blind machine. This part is not mandatory though. You can skip straight to the Substance Setup & Workflow section if desired.

Official Documentation

https://substance3d.adobe.com/documentation/spdoc/color-management-223053233.html

Color-managed Workflow

We can break the workflow into 4 sections : Input, Workspace, Display and Output

You transfer data between each of these section. Data that must be potentially decoded and then encoded, depending on what the section required. In Substance Painter this data is most of the time pixels, encoded using the RGB color model.

All of these data-transfers allow me to introduce the most important rule: you always need to know where you start to know where you are going. As an example, in the above diagram, to convert the Input data to the Workspace data, we need to know how the Input data is encoded (in our case, which colorspace).

Data types: Color and Scalar

"Where you start" means first, what type of data are you manipulating ?

There are only two types : color and scalar.

It is important to know which one your data belongs to because the scalar one doesn't require your data to be color-managed and as such skip a complex part.

Scalar

Scalar data has no means to be displayed directly, the data store numbers that can be used to drive other types of data. We are only interested in the original value of these numbers and as such this kind of data must never be altered by color-transformations.

To get to more concrete examples scalar data include but is not limited to: roughness, normals, masks, displacement, vectors, ...

Color

Everything that is not scalar. Values stored are intended to be displayed directly. These values are always encoded in some colorspace and require to be decoded properly.

This includes but is not limited to: diffuse/albedo/base-color, subsurface color, specular color, refraction color, every image displayed on the web, ...

In Substance

In Substance you will find this separation depending on the channel you are working on. The full list of color-managed channels is available here.

As Substance is aware if the channel needs to be color-managed, some operations will be adjusted/skipped. An application of this is the view transform that will be disabled when viewing a scalar channel.

This notion will be also applied by yourself when needed to specify the colorspace encoding of a resource (images, alphas, materials, ...). If you import a roughness texture, as it is scalar data you will have to specify the "colorspace" as "raw", so no special decoding is applied.

Workflow Sections

Input

Data that need to be processed, can be anything but in our case it is pixel data, like an image texture, a brushstroke, a procedural noise, ...

If it is scalar, we don't need to decode it. We must specify that we don't want color-transformations by specifying for example the colorspace="raw".

If it is color this means that the data has been mandatorily encoded in a given colorspace. You can hope that this encoding is specified somewhere, like in the name, in the metadata, ... But as color-management is a big mess still in 2021 most of the time we will assume that it's in sRGB colorspace with a transfer-function depending on the file format used.

In Substance Painter the Input section can be found on the image slot of each layer. See Input Setup in Sp.

Workspace

Everything you create, modify go through it. We define how it is configured so we can always know "where to go" when transforming an Input. In sp this is the "Working color space". In OCIO term it corresponds the scene_linear role (also the reference one).

Even though sp doesn't support OCIO role, it read the scene_linear one to use it as the Working Colorspace.

Display

Once the data has been processed through the Workspace you might want to preview it. To do so, everybody will be using some kind of hardware display, usually a computer monitor. This might sound dumb but it is a critical step. So here we need to convert the Workspace data to Display data, and there is a lot to do here.

We can see the Workspace as an "open-domain", where data can be stored in some fancy colorspaces, reach some very high values, ... (it can also be closed with data being already closer to the Display domain). We can then see the Display as a "closed-domain", it except a kind of particularly encoded signal and has limits clearly defined. Knowing the source (Workspace) we can define the transformations required to convert it to the target (Display). This involved at his core, colorspace primaries conversion (if Workspace colorspace is different from the Display ones), transfer-function encoding/re-encoding (to convert a linear Workspace to a Display requiring the sRGB transfer-function), and at a more advanced stage, a dynamic-range conversion (still if required). This last step is usually called "tonemapping" where we try to make the open-domain that is the Workspace fit into the Display closed-domain.

Damn that's a complicated one, but anyway, what you have to keep in mind is we are encoding data for a delimited domain defined by the display you are using.

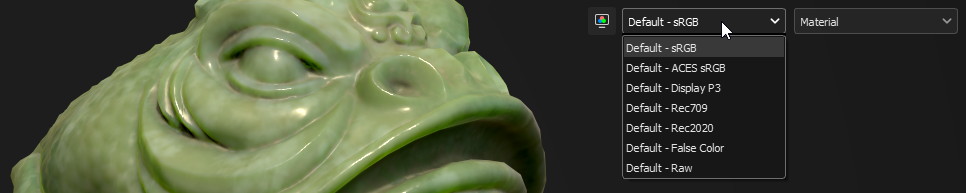

In sp the Display section is handled by the view-transform dropdown, that you can find at the top-right of your viewport. See Display Setup in Sp .

Output

But isn't the Display the Output ? Yes, it can be, if you are at the end of the chain. But here in sp, the end of the chain is our exported texture files. The Display only allow us to have a preview of how they could look.

So here, we will encode the Workspace data, has it is required for the next pipeline step. Encoding will depend on what you need in the next step and what container (image format) you chose.

In sp the Output section happens during the textures export process. See Output Setup in Sp .

Example

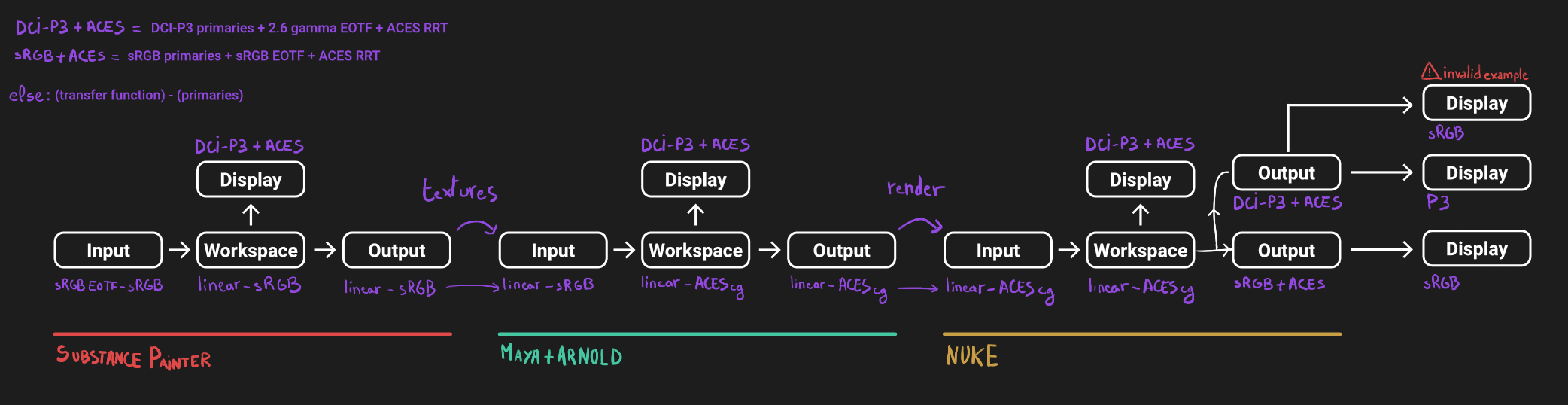

To illustrate the theory here is a diagram representing a section of a potential VFX-pipeline. I hope this will not confuse you more than this topic already is.

• I voluntarily chose different colorspace across departments and sections to accentuate potential transformations.

• It has been chosen to work with ACES for the color-management.

• Let's assume all the users working on this pipeline have access to the same display which is a DCI-P3 calibrated monitor.

Substance Painter

If we look at the Substance Painter department, we can see that our workspace is linear - sRGB. The artist decided to not bother working with ACEScg colorspace but instead is using sRGB primaries. This means that for the Display, the chain of color-transformation is the following :

linear - sRGB > linear - ACES 2065-1 + ACES RRT > 2.6 gamma - DCI-P3

And all of these transformation are magically handled by the OCIO config, the artist only specify what display is he using by modifying the view-transform colorspace.

We finally export the textures in the same Workspace colorspace.

You made it yay ! Color-science is a complex topic, so don't worry if you don't get everything the first time. You will find additional resources to continue your exploration at the end of this article.

Now, let's put into practice the theory ...

Substance Setup & Workflow

Color-management is not application-dependent but project-dependant. As such, you will not find any options in the applications settings but in project ones.

New Project

The first occurrence of these new options can be found on the New project window. You will find a Color Management sub-menu at the bottom.

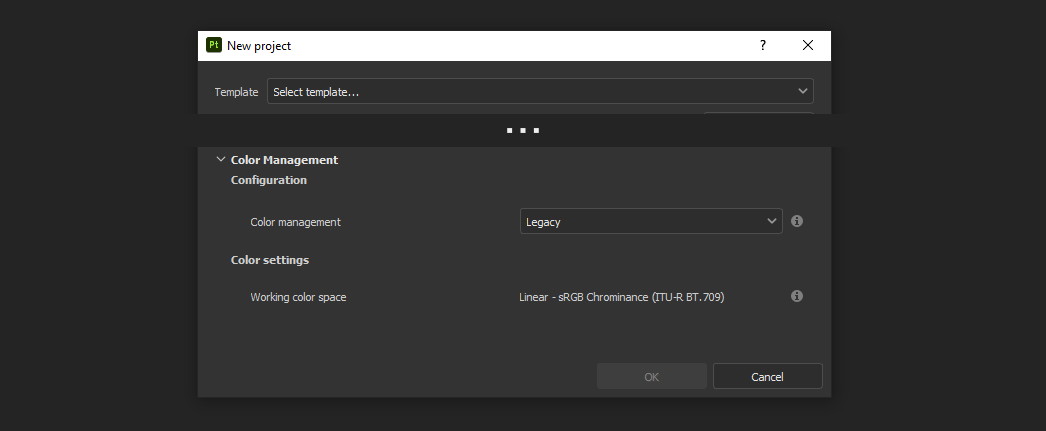

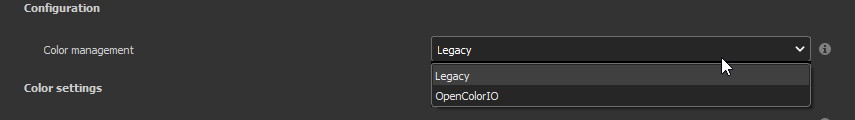

You will be offered between two modes Legacy and OpenColorIO. Legacy corresponds to the pre-release way sp was working with. We will skip this mode as it is not useful anymore.

OCIO config

But wait, wait ... what is OCIO ? Why should I use it ?

OCIO is a color-management solution developed originally by Sony Picture Imageworks aiming at enforcing color-management consistency between DCCs. I recommend having a read at the documentation.

OCIO itself only define standards of utilisation and give you the tools to work but the core of the system is the OCIO config (a .ocio file). This is where all the color-transforms and options are defined. For example, ACES is a color-management system on his own but ship a version through OCIO.

The main advantage is that OCIO is supported by most software (even if the implementation wildly differs between each 😬 ) so you could get the same look through all of your DCCs (in theory).

For our convenience sp already ships with 3 OCIO configs :

• Substance
• ACES 1.0.3
• ACES 1.2

You can find them in the sp installation folder like this one :

C:\Program Files\Allegorithmic\Adobe Substance 3D Painter\resources\ocio

Lot of flexibility here. First option is to use the shipped configs. In my opinion only the Substance config is interesting here. The 2 ACES ones are the "default" dev configs with the hundred of colorspaces you will never need. It is better to use a lightweight ACES config like the one from CAVE academy. (see ACES Workflow section)

The Substance config will be a good fit if you are using the traditional sRGB linear workflow and do not wish to use an OCIO config in every DCC. You will still have enough control to have a proper color-managed workflow.

Let's now see how you could load a custom OCIO config.

Custom config

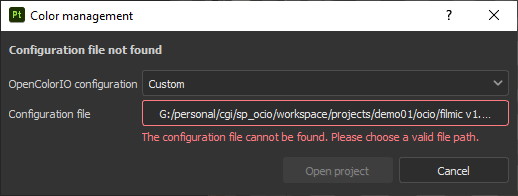

The first option is to use the Custom option and manually look for the path to the config.ocio file on your disk.

See the bottom section Substance parameters for OCIO configs to continue the setup.

Environment variable

The above might be enough for individual artists but being in a pipeline environment requires other ways to set OCIO automatically.

On Windows you have 2 ways to set environment variables :

Global Settings

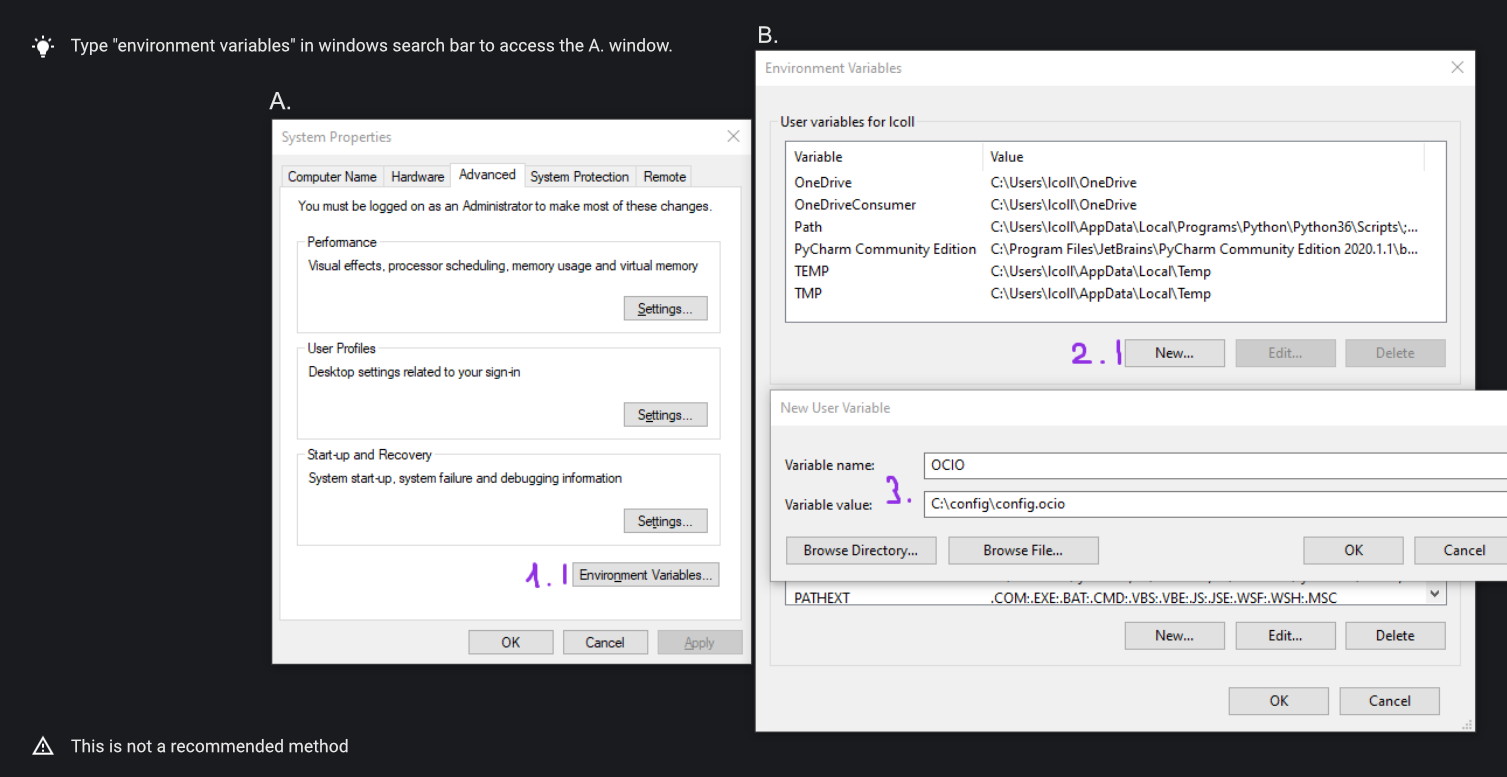

You create a new variable named OCIO with the path to the config. This variable will be used by ALL software that can read it. (unless overridden).

This is not a recommended solution as you pollute your environment variable + if you decide to switch the config for another one all your previous project will be broken.

Set locally at startup

You defined the environment variable in a start-up script. This is the cleanest way to do it but means you can't use the Windows shortcut to start your software:

We use a .bat to configure and launch the software. Here is a basic .bat that will set the OCIO variable and then launch sp.

set "OCIO=C:\aces_1.1\config.ocio"

start "" "C:\Program Files\Allegorithmic\Adobe Substance 3D Painter\Adobe Substance 3D Painter.exe"

This means that to launch Substance you will have to always use this .bat. No "double-clicking" on file to open them either. You can have a look on internet at how to pin a .bat to the taskbar.

But this guarantees a very robust software configuration per project.

Substance parameters for OCIO configs

It corresponds to all the sections below the color-management mode. It allows to configure how inputs react with the OCIO config, i.e. which colorspace is being assigned by default.

Usually, in other software, this section is configured using the OCIO roles defined in the OCIO configuration. But currently sp support only its own OCIO roles. Which mean you might have to manually setup this section to get a correct result with the auto settings OR make sure the OCIO config you are using have the OCIO roles supported by Sp.

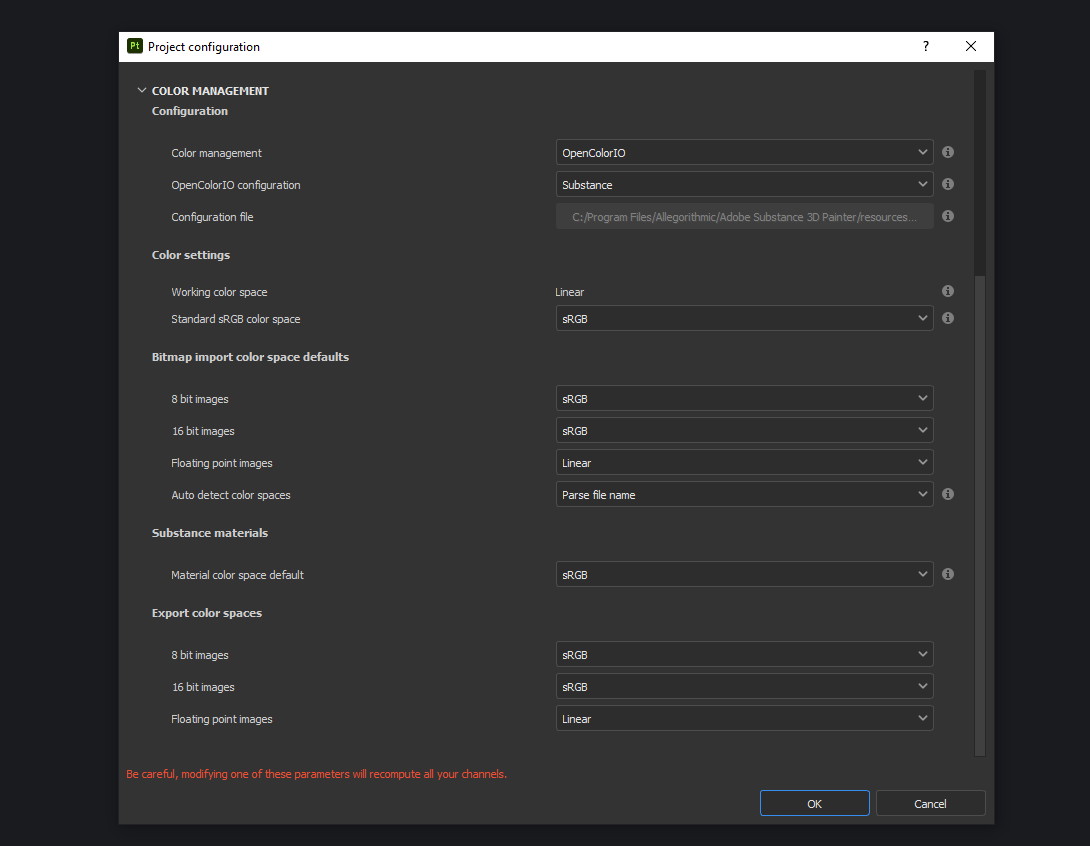

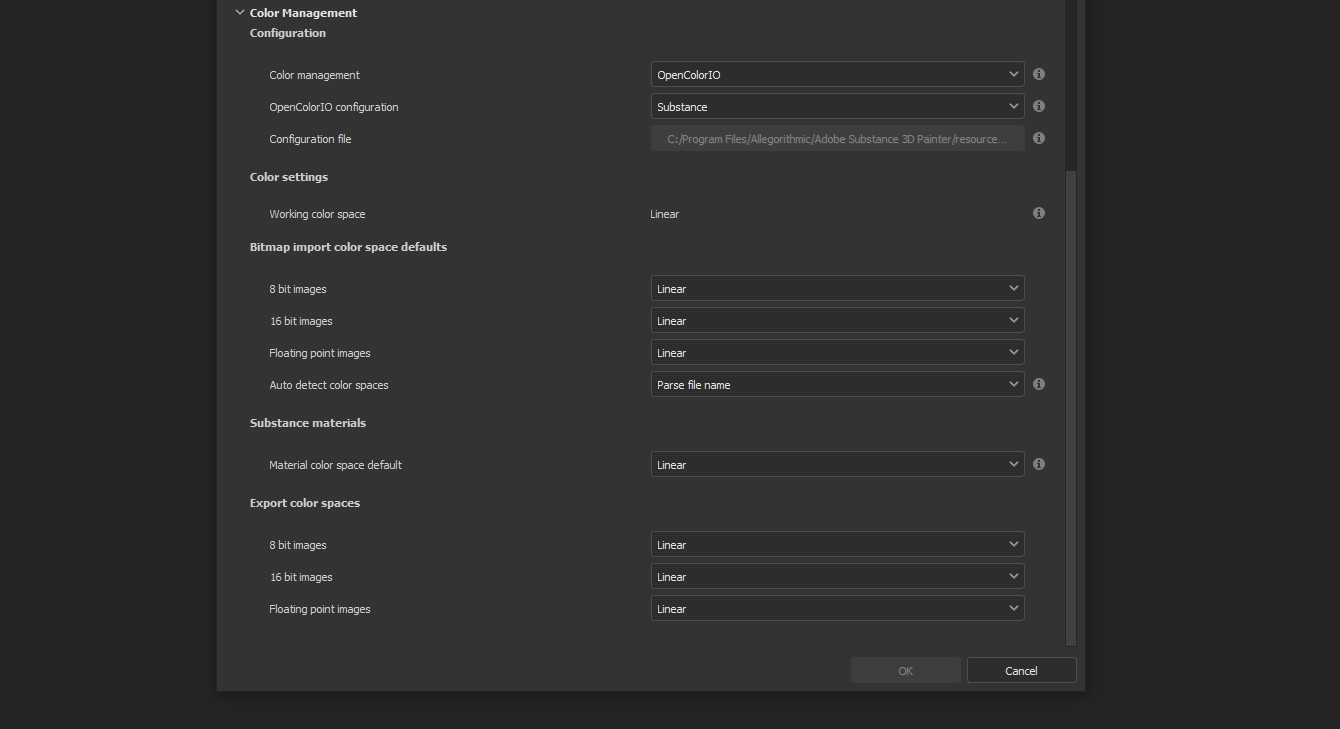

If you look at the above image, this is how it is supposed to look when picking the Substance config. As the Substance config have the supported OCIO roles defined, the parameters are properly configured.

But if you are loading a custom config, make sure these options are properly configured with the intended colorspaces for each format if you want all the auto options to work properly. Most of them (except Export ones) can be changed in context in last resort.

Visit the ACES Workflow section to find how this should be considered if you are using the ACES config.

Since 7.4.2 you can also find a new Standard sRGB color space parameter which is a very nice add for having UI elements properly managed. If the name doesn't look clear, it corresponds to the sRGB - Display encoded colorspace. From the documentation, it is used :

• To convert color set in the hexadecimal field of the color picker.
• To save and load color swatches within the color picker.
• To be listed as a Display in the color picker list.

This update also adds support for specific OCIO role which are the following :

substance_3d_painter_bitmap_import_8bit
substance_3d_painter_bitmap_import_16bit
substance_3d_painter_bitmap_import_floating
substance_3d_painter_bitmap_export_8bit
substance_3d_painter_bitmap_export_16bit
substance_3d_painter_bitmap_export_floating
substance_3d_painter_substance_material

New Project : Conclusion

Alright, to recap everything for a new project you need :

1. Change the color-management mode to OCIO
2. Choose the OCIO config (already chosen if env variable set)
3. Check the OCIO options to have the correct default colorspaces working.

And of course, setting the other parameters related to your texturing.

Now you are good to start the texturing workflow. The workflow will be divided into the same sections explained in the theoretical part of this article (see Color-managed Workflow).

Workspace Setup in Sp

The Workspace, in software is actually an "abstract" section. It just represents the colorspace used as a reference, target or source for every color transformation. It is defined in the OCIO config and cannot be changed outside of it.

It is just good to know what is the colorspace being used here.

Display Setup in Sp

A good first step before working is to make sure the Display part is properly configured so you don't start texturing while viewing the wrong colors. This Display part can be configured using what we usually called a view-transform menu. In sp, you can find it at the top-right of your viewport.

What you have to remember is that you need to choose the option that corresponds to your display. If your display is calibrated to the Display P3 colorspace (Apple displays), choose the Display P3 option.

But what if I don't know what my display is calibrated to ?

A safe choice would be to assume you are using an sRGB-like display.

I see some people using Rec.709 instead of sRGB, why ?

sRGB and Rec.709 share the same primaries, so you can use both without seeing color-shift due to different primaries. What does change is the transfer function being used. But fasten your seat-belt, here comes the mess : Rec.709 only defined an OETF which is intended for camera signal encoding, not data display encoding ! For display encoding with the Rec.709 colorspace, one should use the BT.1886 standard which can be resumed as a simple 2.4 power-function.

So how to know which one of these two is being used ? Simple, if when compared to sRGB, the image looks darker, it's the OETF, if it's looking less contrasty, it's BT.1886.

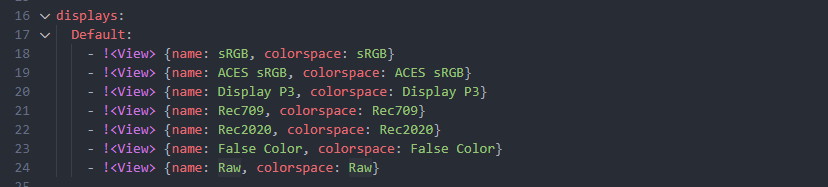

If you do the test, the Substance config use the OETF (which should not be used), while the ACES config uses BT.1886.

You didn't answer my question !? I'm just more confused now !

As written previously, you need to choose the option that corresponds to your display, so if your display is not calibrated to Rec.709+BT.1886 don't use it. But some people like the look of it, being less contrasty, that's why it's being chosen. But the display should not be a creative choice. If you like a less contrasty look, you should apply it in the Look (see under).

Just to add more confusion, the BT.1886 difference with sRGB can actually be used as a viewing environment compensation. So it can actually justify why using Rec709+BT.1886 instead of sRGB.

Anyways, I'm going too far from the subject, and someone already wrote about this topic, I let you read this mind-blowing article from Chris Brejon OCIO, Display Transforms and Misconceptions.

Displaying Color and Scalar data

Sp will handle it for you automatically, depending on the channel you are previewing.

The full list of color-managed channels is available here.

For example, selecting the Roughness channel for preview will disable the view-transform :

Custom User Channels

If you are using a custom User channel, you will have to manually specify if the channel is color-managed. (By default they are not) This is achieved by clicking on the gear icon > Color channel.

Input Setup in Sp

Texturing is all about mixing already existing images, with some carefully crafted paint stroke, and funky procedural resources. All of these, if they are color-data, have been created and saved with a specific colorspace. We will need to know and then specify this colorspace to sp so the OCIO processor can know if it needs conversion to the Workspace colorspace.

Shelf Resources

In Sp this manipulation takes place, weirdly, on the images slots of each layer. You will not find any option to specify the colorspace in the shelf.

By default, it is set to auto, which will use the settings specified in the project color-management menu explained above. (Substance parameters for OCIO configs).

I recommend always modifying this option to the proper colorspace to be sure the resource is properly color-managed.

Another option is to have the source colorspace specified in the file name. That's in my opinion a bit messy because the colorspace has to be the exact name used in the config. If 2 configs used a different name, your image will only work for one. If I take for example a colorspace name used in the ACES config this could give: bricks_wall_albedo_Utility - Linear - sRGB.exr (which also means the filename include whitespaces which are to avoid).

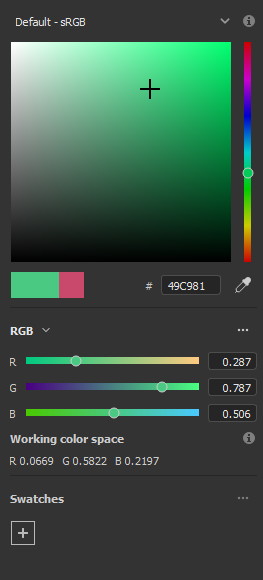

The color-picker

But keep in mind that you have to be careful on the color you are chosing, the fact that it looks as you want (perceptual) doesn't mean the scene-refered values (working colorspace) have a physically plausible value. For exemple, in an ACES workflow you might want to make sure that no channel's value goes up to 1.0, which mean you are reaching the boundary of the ACEScg gamut which is comparable to a laser's color.

What about the actual picker ?

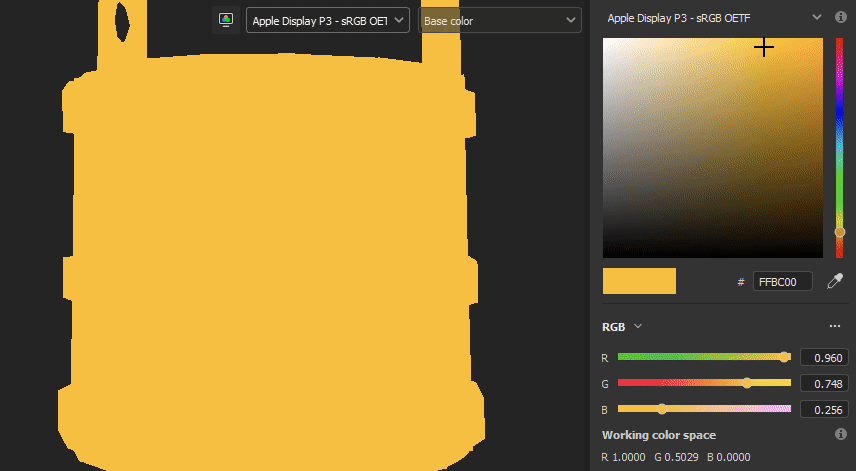

The picker will pick the value at display, so with the view-transform applied (if not disabled). Consider this as the input, and will convert from the tcd colorspace to the working colorspace. You then get back "nearly" the same value (with some math precisions issue ).

What I recommend though, is to change the view-transform to a "no-operation" colorspace (usually called raw), pick the color, and re-apply the previous view-transform. This will avoid the potential colorspace invertibility and imprecisions issues.

So I must say that the latest update have greatly improved the color-picking experience which behave a bit more as you would except. Cool stuff ! Looking forward to next updates to reach the perfect color-picking experience haha.

Environment

There is no direct option to modify the environment image colorspace.

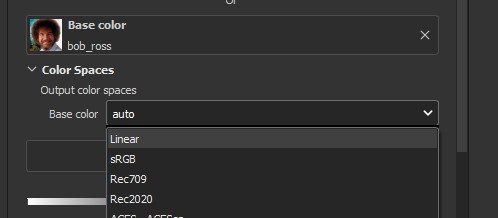

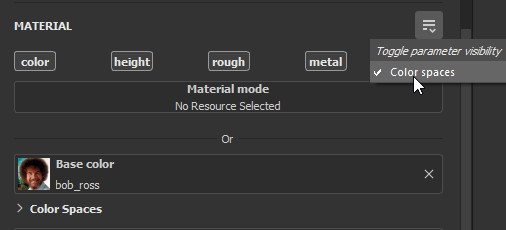

From 7.4.2 + you can find an option in the Display Settings Menu, to change the environment colorspace being used.

For the other versions you still have the following options:

• Modify the default Linear colorspace in the project settings. The environments maps will use it.

• Include the source colorspace in the name of the HDRI. It has to be the exact same name as defined in the config. Example : myhdri_ACES - ACEScg.exr (you can find an example in ACES - Environment).

Masks

When you right-click on a mask you have the option to Export mask as File. Don't worry, mask seems to always be considered as scalar and exported without any treatment.

Output Setup in Sp

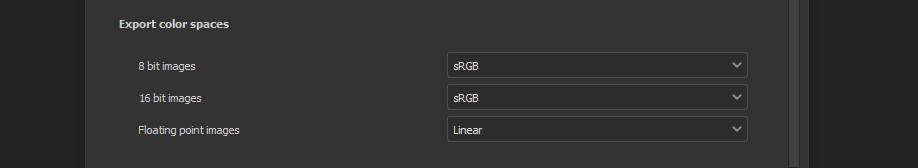

The Export Textures window didn't got much new. We doesn't have any options to apply a color-transformation at export time in the Window. The only options are the one available into the project settings.

Basically, integer format should be sRGB display encoded. Floating point format should use the same working colorspace.

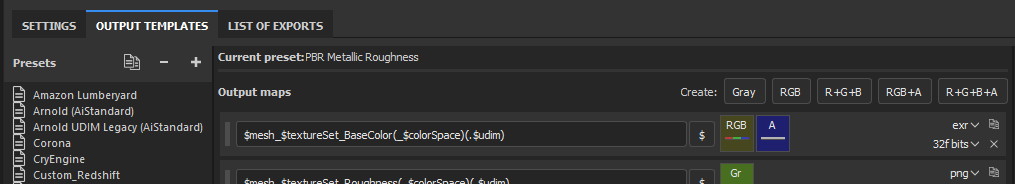

What's new though is the $colorspace token in the Output Templates tab.

Which is simply replaced by the colorspace defined in the project settings. (You can have a preview of the file name in the LIST OF EXPORT tab).

I'm personaly not fan of this option as this might introduce special characters in the file's name, depending on how the colorspace is named. It is, I think, a better option to have the texture name without the colorspace, but exported in a directory with the colorspace name.

For scalar channels, sp will not apply any color-transformation and consider them using the colorspace raw (no matter the config). Interstingly, this colorspace raw doesn't get written into the $colorspace token as it should. (fixed in 7.4.1)

ACES Workflow

I'm not going to get into the what and the why, only the how. Let's keep the rest for a next (potential) article ?

ACES - Config setup

You could use the one shipped with Substance but I wouldn't recommend so. They are the ones with the hundred colorspaces that will just slow you down when you need to choose one.

Instead, it would be smarter to use a config with only what you need like the one from CAVE academy.

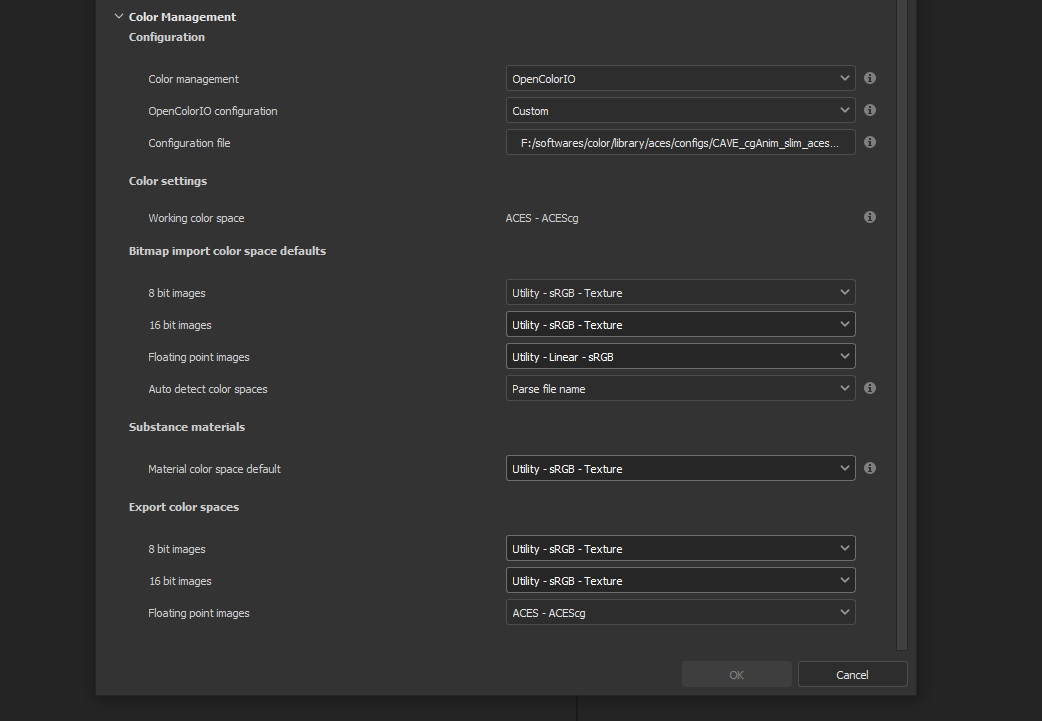

Then you will need to configure the default colorspaces. Using the Cave config (which have the same nomenclature as the official ACES ones) here is what I recommend :

Import settings are the usual stuff, most of the 8bit texture, if not all are sRGB display encoded files so Utility - sRGB - Texture correspond. Floating point images like EXRs should always be linear so the alternative version Utility - Linear - sRGB is the right choice. Remember these options are just applied by default (with the auto colorspace) but can be changed anytime.

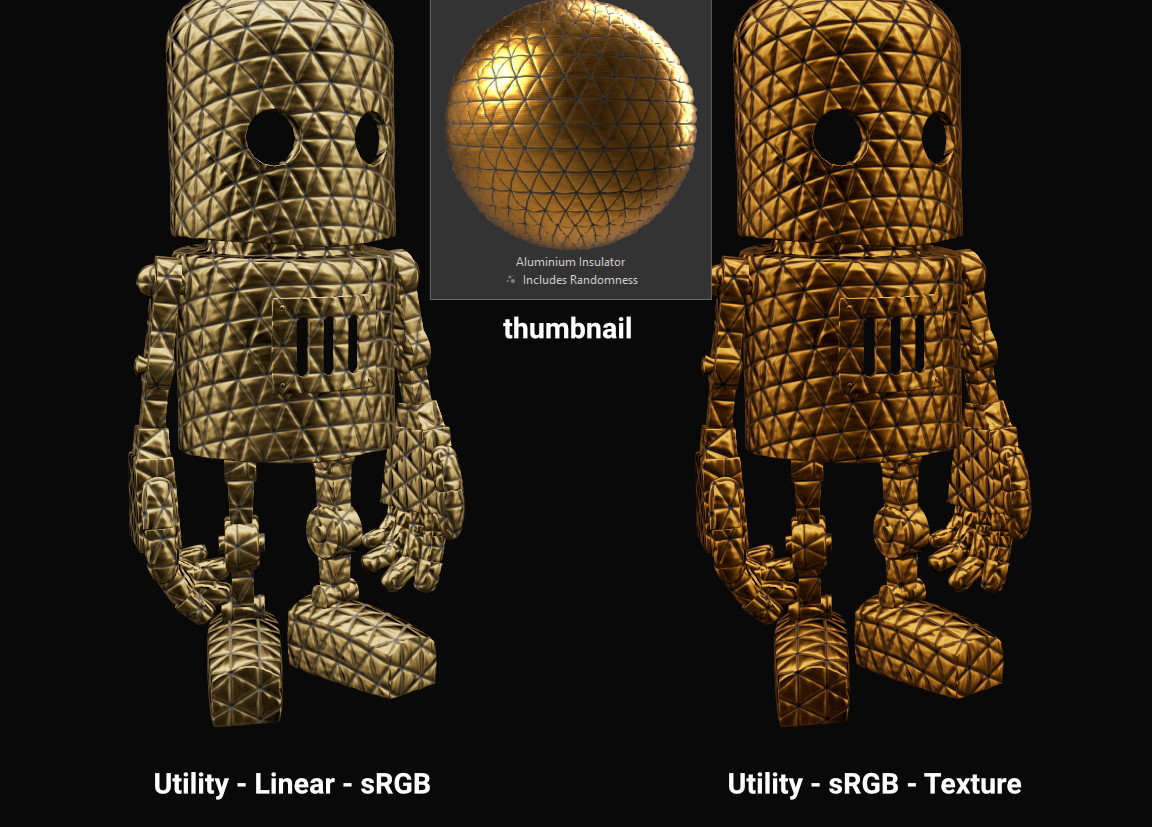

I choose Utility - sRGB - Texture for Substance materials because it seems the output is always sRGB display encoded as the screenshot under show. (colorspace options can be modified on the material anyway).

Now for the output my choice is not the only option. To me, you shouldn't export ACEScg 8bit files, that why I re-encode them back to sRGB by using Utility - sRGB - Texture. The right option is to export EXRs (floating point images) in the same working colorspace: ACEScg. And don't worry for scalar channel they will be handled automatically at export. These options are the only ones that can't be modified per-case though; this is the only place you can change them.

ACES - What to do when working

I'm only going to give detailed explanations when something is specific to ACES. Meanwhile the explanations given in Substance Setup & Workflow still apply so make sure you properly understood this section.

ACES - Display

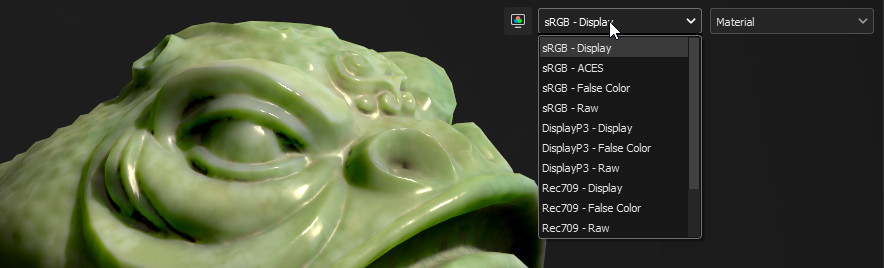

Not much new, use the view-transform that correspond to the display you are using. (In my case ACES - sRGB, that behind the scene, uses Output - sRGB)

ACES - Inputs

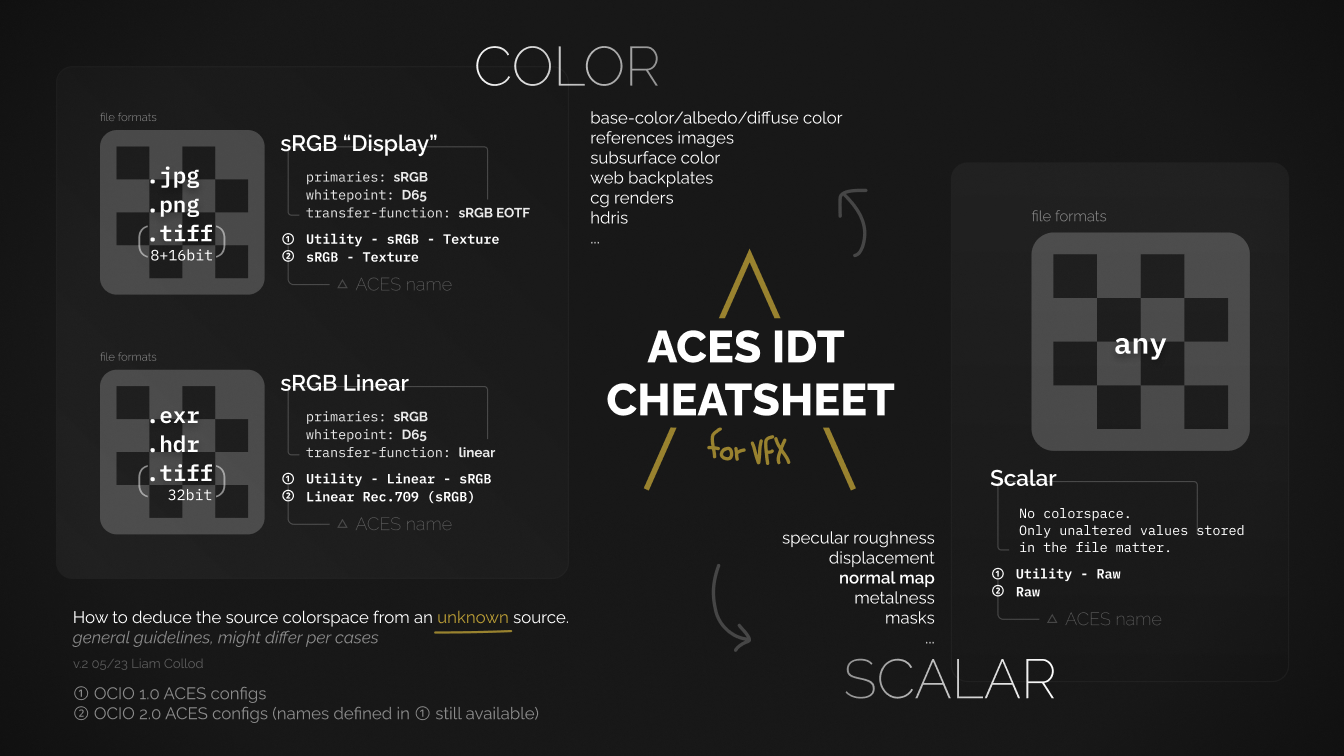

For every external resource you import, you need to assign the correct input colorspace if the automatic one doesn't correspond. The usual rules for the ACES workflow apply.

ACES - Environment

There is unfortunately no direct options to change environment's colorspace.

From 7.4.2+ you can find an option in the Display Settings Menu, to change the environment colorspace being used.

Environment follow default colorspace rules. Being floating point image , they will use the pre-defined Utility - Linear - sRGB colorspace. So as long as they are sRGB - linear-like encoded, they will be properly displayed.

If that not the case you can use the mentioned override option, but in the case you are using an older version here is my previous solution :

But what if I want to import an already converted ACEScg HDRI ?

There is a way to have it working. You can specify the colorspace in the file name. The colorspace has to be the exact same name as the one defined in the config. An example would be: myhdri_ACES - ACEScg.exr.

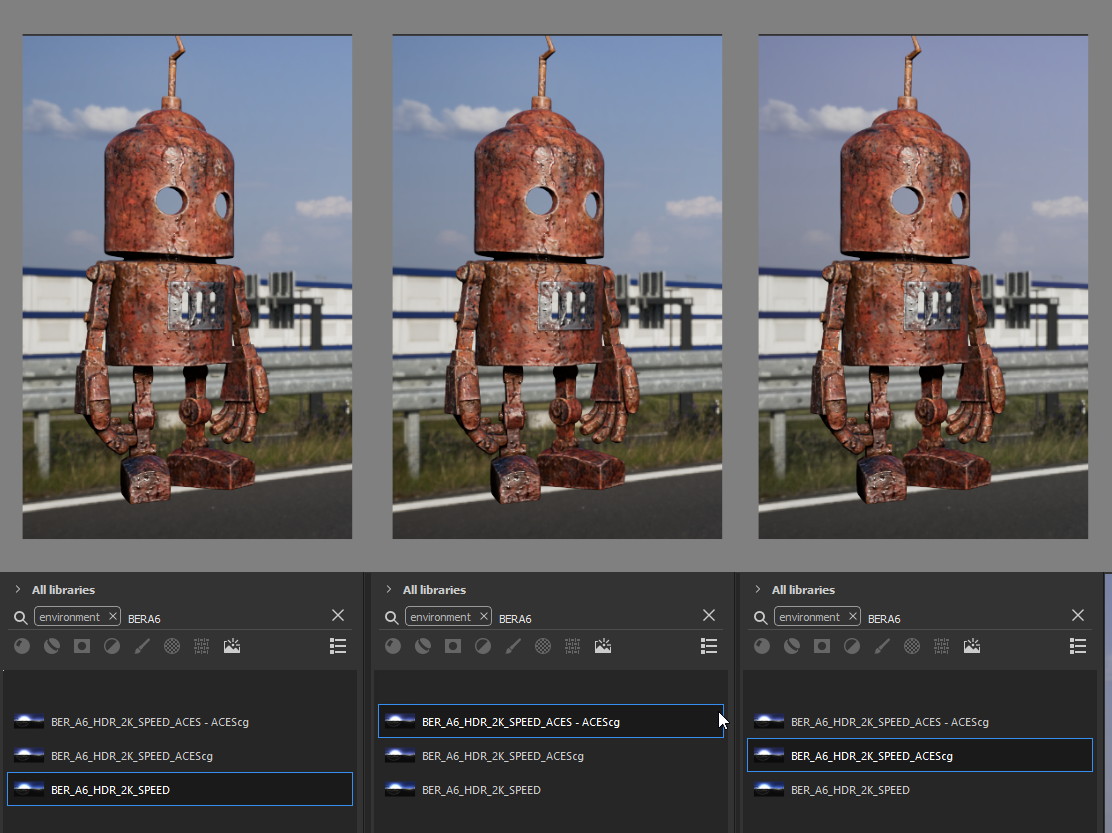

Left one is sRGB encoded, middle and right ACEScg encoded. Right one doesn't get properly converted and looks shifted.

ACES - Colorpicker

Everything in The color-picker section applies here. You can just except more odd behavior as a wider-gamut and more complex view-transform will not play well with it. The first potential issue that came to my mind is the combinaison of 0-1 clamping + ACES ODT : If you are picking a pure value of RGB(1,1,1) considered encoded as Output - sRGB, you would usually get back a scene-referred value of RGB(16.2,16.2,16.2). But the color-picker is clamped between the 0-1 range so you will end up with just RGB(1,1,1).

Then consider the following example :

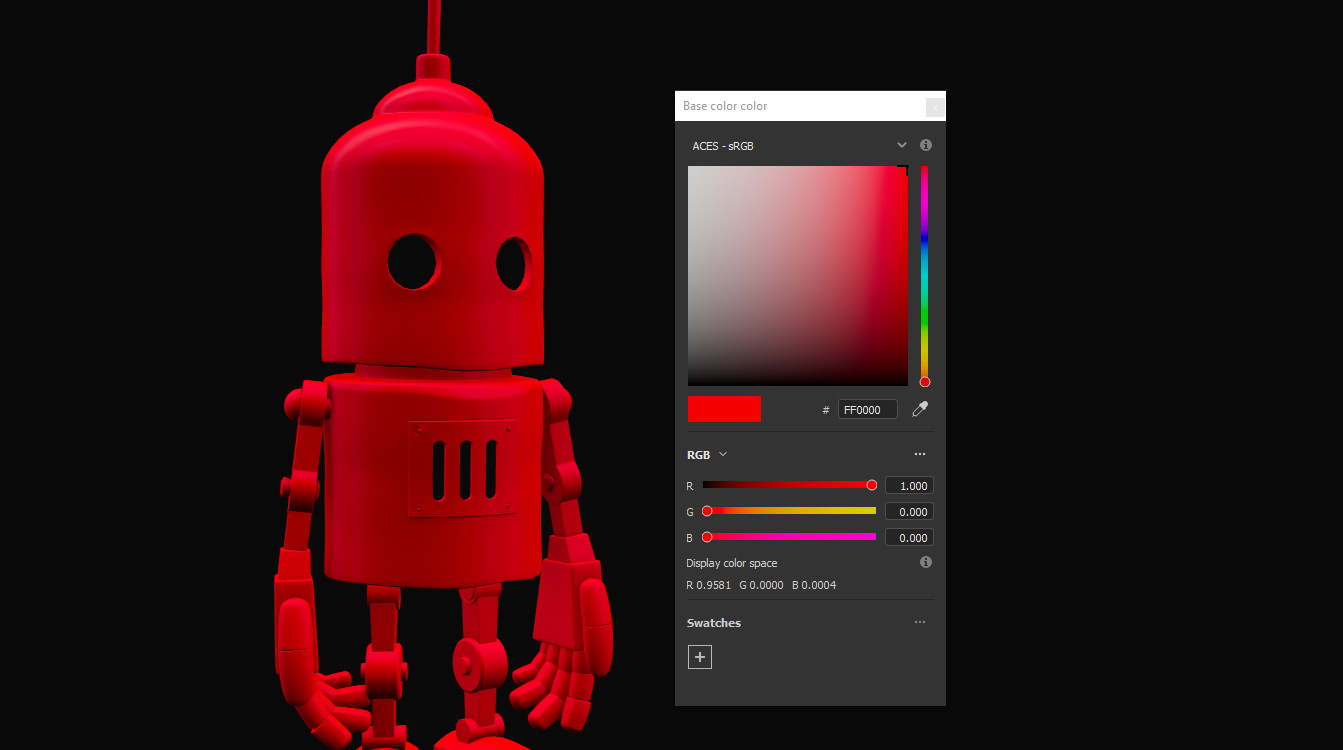

I have an ACEScg value of (1,0,0) which is damn too saturated and no object except laser are that saturated.

What if I want to apply a color we gave me as hexadecimal ?

Consider my brand's green picked from https://coolors.co.

Well ... the less brain-damaging solution would be to just eyeball the color.

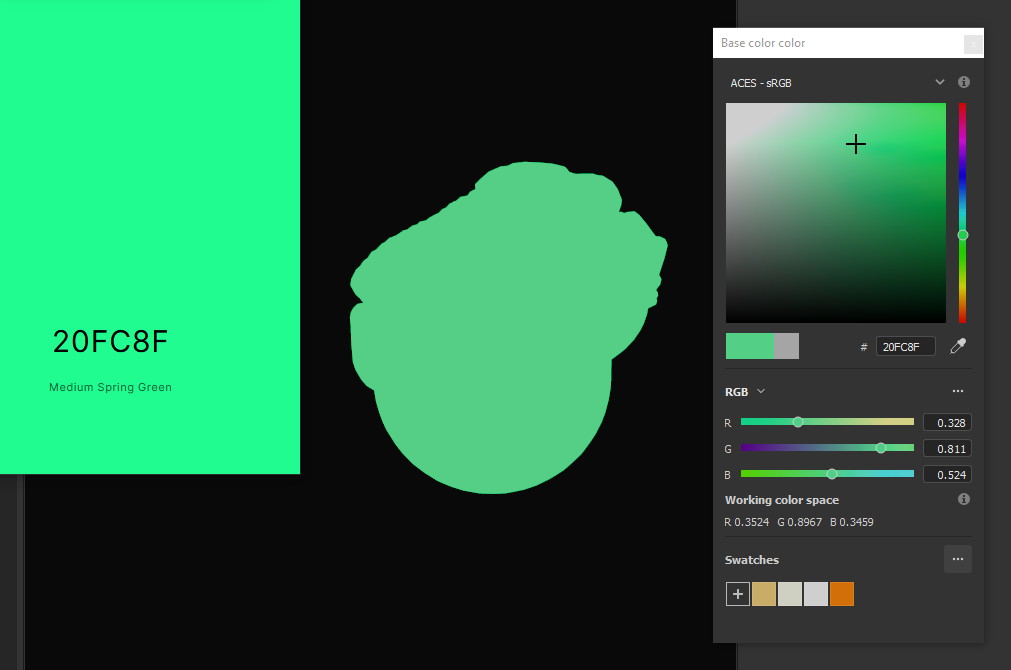

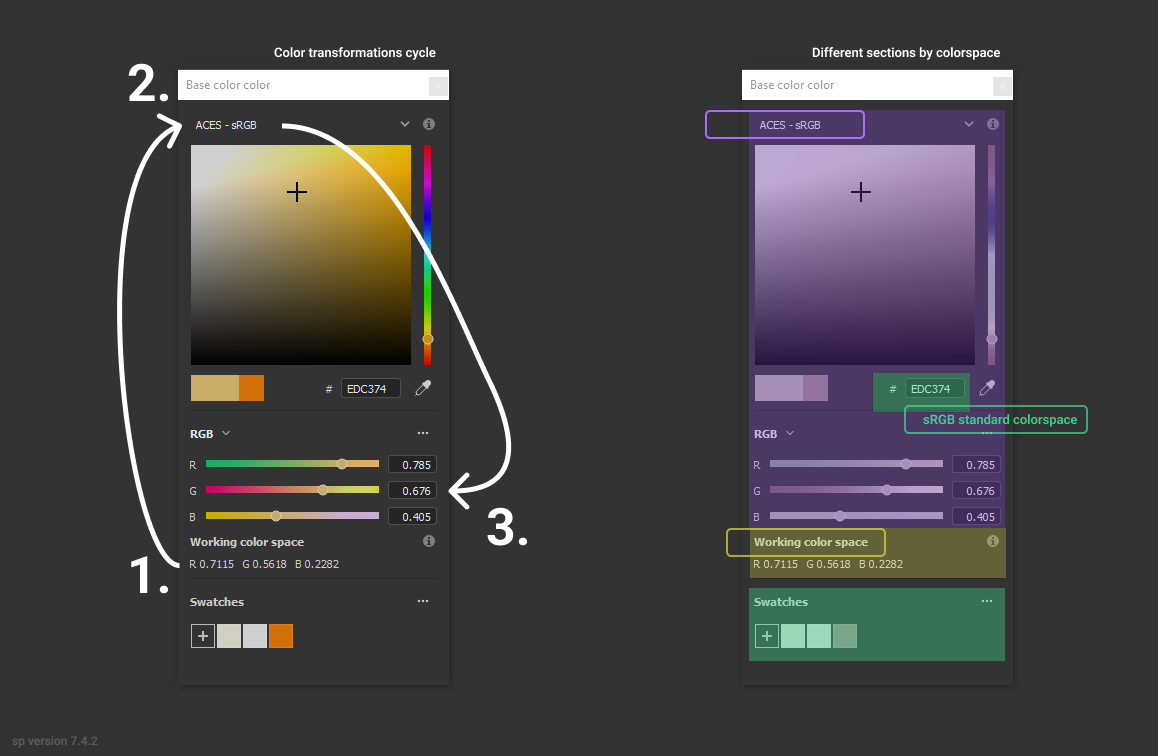

Luckily, the 7.4.2 update made thing easier for us. The hexadecimal color will assume to be encoded in the sRGB standard colorspace and converted to the working colorspace. So just copy/paste your color in the hexadecimal field and you should have your color converted.

Even with this, you might notice that the color is still not similar to the sRGB one. This is normal and inherent to the ACES ODT which apply a "creative" and "technical" transformation on display.

So keep this in mind: you will never be able to match the look of the sRGB workflow with the ACES workflow. (unless cheating).

I'm not going to dive into further explanations as there is enough ACES central threads on this subject and Chris is also explaining it here.

ACES - Output

Do yourself a favour here and only care about EXR. You don't need anything else and this is the file format recommended by the Academy for ACES data encoding.

If you choose EXR, you have nothing to care about. Color channel will be exported in ACEScg while scalar channel will bypass any color-transform encoding. Simple as that.

Reminder that you can choose to remove the $colorspace token in your export template map name to avoid unwanted special characters in your file name. (and instead export the textures in a folder named ACEScg)

OCIO Implementation Issues

Display Issues

These explanations were made possible thanks to the Chris Brejon's article OCIO, Display Transforms and Misconceptions.

Display components mismatch

OCIO divide the Display section into 3 components :

• Display : the physical hardware you are using (monitor, TV, phone, ...).
• View : a way to encode the data for a specific viewing purpose.
• Look : a creative layer of modification on the data. ex: a grade.

Why do I explain you this ? Because these components are often mismatched or forgotten. Unfortunately, Substance makes no exception here.

If you look at the view-transform screenshot above, you can see that each option has the Default prefix. If we have a look at the config.ocio file from the Substance config, we can see why :

What should be a display or a separate view is actually all merged into a single view component !

Here is how it should look:

displays:
  sRGB:
    - !<View> {name: Display, colorspace: sRGB}
    - !<View> {name: ACES, colorspace: ACES sRGB}
    - !<View> {name: False Color, colorspace: False Color}
    - !<View> {name: Raw, colorspace: Raw}
  Display P3:
    - !<View> {name: Display, colorspace: Display P3}
    - !<View> {name: False Color, colorspace: False Color}
    - !<View> {name: Raw, colorspace: Raw}
  Rec709 :
    - !<View> {name: Display, colorspace: Rec709}
    - !<View> {name: False Color, colorspace: False Color}
    - !<View> {name: Raw, colorspace: Raw}
  Rec2020 :
    - !<View> {name: Display, colorspace: Rec2020}
    - !<View> {name: False Color, colorspace: False Color}
    - !<View> {name: Raw, colorspace: Raw}

Here is the result of the above in Substance Painter :

Using OCIO v2 there are other ways to improve how the config is built. Heads up to Improving the Substance OCIO config to see how.

But even with this fix, it's not very friendly to have a long list of merged (display + view) while you would only need one Display most of the time. The best solution here would be to have 2 dropdowns : One to choose the Display, and one to choose the corresponding available View. We should even get a third one for looks as we are going to see in the next section :

Partial Look support

In above explanations where I mention OCIO Display is build with 3 components, we now see that I didn't mention the last one yet: Looks.

Looks is a color-tansformation performed in any colorspace aimed at modifying the data in a creative way. This would allow for example the artist to have a first look at how its renders could look like after the DI pass.

Usually, Looks are defined similar to colorspaces, as a list, but you can also make a Look available in a display's view:

displays:
    sRGB:
        - !<View> {name: Display, colorspace: sRGB-Display}
        - !<View> {name: Display Grade A, colorspace: sRGB-Display, looks: gradeA}

looks:
- !<Look>
  name: gradeA
  process_space: rclg16
  transform: !<FileTransform> {src: look_A.cc, interpolation: linear}

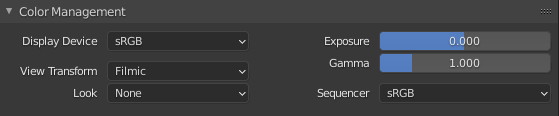

In the best case, we should have a dropdown menu that would allow us to combine the current view-transform with any Look defined. A good example of this is Blender :

Unfortunately, sp didn't implement this feature yet. So we can only rely on merging the look in a display view for now.

A good way to test this is using the Filmic OCIO config by Troy Sobotka. The filmic encoding is correctly available in a View but require an extra step to be correctly displayed. By default, it is a flat log representation, and require choosing a Look with the desired contrast amount.

To have it working in sp, it is required to merge the Look in a new View.

displays:
    sRGB:
        - !<View> {name: sRGB OETF, colorspace: sRGB OETF}
        ...
        - !<View> {name: Filmic Very High Contrast, colorspace: Filmic Log Encoding, look: +Very High Contrast}
        ...

Which in sp, if we kept all the contrast amount, give us a very long list of cropped name 😬 But at least it's working.

Improving the Substance OCIO config

The Substance OCIO config is an OCIO v1 configuration. I don't know what is the reason they decided to not use the v2 for their config because it could really helped having a cleaner and better config (even if the artist wouldn't see that much of a difference).

By curiosity I tried to put my hand on OCIO v2 and create a config that could be a substitution of the Substance config. Documentation was pretty straight forward and I manage to build a nice config using python. You can find the result here :

OCIO.Liam

https://github.com/MrLixm/OCIO.Liam

Personal OCIO resources, including configs.

I called it Versatile. It only misses the false color view from the Substance config. Have a look at the config.ocio file to see the new features.

Issues Recap

This list aim at helping the potential Substance dev team members reading this, addressing the issues. Keep in mind that this is my personal opinion, i'm not a color-scientist nor a profesional developer.

• Substance OCIO config:

  • uses the wrong Rec.709 display encoding. (see the rec709 transfer-function issue)
  • miss simple P3 colorspaces while it offers a Rec2020 one (who would use it ??)

  • displays key is not properly built. (see substance-config-displays-fixed )

  • could overall, benefits from using OCIO v2 features.

• OCIO roles are not supported, as such default configuration for projects is wrong and can confuse artists. (implemented on 7.4.2 !)(see Substance parameters for OCIO configs)

• The view-transform dropdown is too small in width. When selecting long display names, they got cropped (see sp-odt-name-cropped).

• The view-transform dropdown could be split into 2 dropdowns. One for Displays and one for Views. (see substance-config-displays-fixed)

• Colorspace on resources (images, ...) should be performable from the shelf and not from a layer's slot. A resource doesn't have its original colorspace changing depending on where it's used !

• There is no direct option to change the environment image colorspace. Having the above suggestion implemented would solve this one too. (implemented on 7.4.2 !)(see Environment )

• Color-picker : modifying the top colorspace should affect the editable values. Where the top colorspace represents the colorspace used to enter values so they can be converted to the working colorspace behind the scene. (implemented on 7.4.2 !)

• With the above, add a way to see what values are being used in the workspace. {.strikethrough} (implemented on 7.4.2 !)

• Color-picker is broken. It reacts differently depending on the OCIO config version used. (see picker section for details). Update: it is less broken in 7.4.2 but there is still no some issues.

• No options to set a specific colorspace for textures at export time.

• When use the following OCIO v2 colorspace name token, an error is logged:

  [ColorManagement] Error while creating OpenColorIO colorspace transform: Color space '<USE_DISPLAY_NAME>' could not be found


  But displays still manage to work without issues. EDIT: This actually affect the color-picker who doesn't seems to supports shared-views.

• custom user channels doesn't behave as color-managed in the interface (see Custom User Channels)

Conclusion

Damn that was a long one. Congrats if you stick to the end, I hope you now have an idea of how you could use OCIO in SubstancePainter. If not, don't hesitate to contact me to suggest how this article could be improved. (you can also join the discord, click on the purple button at the bottom of this page)

If you like this post and wish to support me you could buy some of my scripts on my Gumroad or check my ko-fi at the bottom of this page.

I see you in the next one that would probably be on the same topic but on Mari 👋 (2025 and still not there 💀)

Resources

The Hitchhiker's Guide to Digital Colour

https://hg2dc.com/

The step by step guidebook for digital pixel pushers trying to get a firm grasp on colour to get sh*t done…

Chris Brejon's Book

https://chrisbrejon.com/cg-cinematography/chapter-1-color-management

CG Cinematography Color Management is about this beautiful yet annoying and essential topic of gamut. Definitely not the easiest way to start.

ACES Central

https://community.acescentral.com/

ACES Community Forum

Cinematic Color

https://cinematiccolor.org/

This paper from 2012 presents an introduction to the color pipelines behind modern feature-film visual-effects and animation.

Changelog

• 17-12-2021: fixed The color-picker section. Discussion available here

• 09-03-2022: Updated article following 7.4.2 update.

  • Substance parameters for OCIO configs : updated
  • The color-picker : whole section re-wrote
  • Environment : updated
  • ACES - Colorpicker : updated
  • Issues Recap : updated

• 01-02-2023: added precision for custom user channels

  • Custom User Channels : section created
